Sreenex Flexi Mill

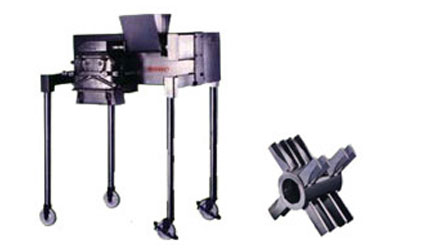

Sreenex Flexi Mill versatility is enhanced with its one piece reversible knife/impact rotor. The impact edge pulverizes and emulsifies while the knife edge granulates, chops and sizes. Switching from knife to impact is accomplished simply by reversing the rotor.
Sreenex Flexi Mill Machine is most suitable in pharmaceutical industry for precision particle size reduction. The Flexi mill is ideal for use in continuous process, batch production, research & product development. This unique machine is developed for the first time in India to facilitate through cleaning as each and every contact part can be easily dismantled and fixed.
Techinical Specification
Model SFM-38 SFM-612 SFM-912
*Capacity per hour 50 to 200 Kgs. 100 to 500 Kgs. 300 to 800 Kgs.
*Capacity per hour 50 to 200 Kgs. 100 to 500 Kgs. 300 to 800 Kgs.
Screen size 0.5mm to 25 mm 0.5mm to 25mm 0.5 mm to 25mm
Rotor RPM 1440-2960-5950 1000-2250-4500 1000-2250-4500
Electrical motor 3 HP/2.2 Kw/1440 RPM/415 V/50 Hz/ 3 Phase 7.5 HP/5.5 Kw/1440 RPM/415 V/50 Hz/3 Phase 10 HP/7.5 Kw/1440 RPM/415 V/50 Hz/ 3 Phase
Floor space in mm LxBxH 1200x1000x1500 LxBxH 1300x1200x1700 LxBxH 1500x1200x1800
Case Dimension in mm LxBxH 1400x1200x1700 LxBxH 1500x1400x1900 LxBxH 1700x1400x2000
Net Weight in Kgs. 550 (Approx.) 600(Approx.) 700 (Approx.)
Gross Weight in Kgs. 675(Approx.) 725(Approx.) 850(Approx.)
Screw Feed
The Screw Feeder controls the flow of material into the milling chamber and thus ensures more uniformity in the milled material.
Screw Feed
The Flexi mill Process chamber is often fed simply by gravity.

Cleaning

All disassembled component have less weight. A single operator can disassemble the grinding chamber and feeding system quickly and easily for thorough cleaning.

Salient Features

  • 15kg. To 300kg.batch capacities
  • Better productivity and low drying time
  • SS container with tilting arrangement
  • Compact and easily cleanable
  • No product contamination batch to batch
  • Uniform drying
  • Low drying temperature
  • Electric or Steam Heated
  • Manual or Automatic bag shaking
  • Single piece retarding and finger Bag chamber available

Dimensions

  • 15kg. To 300kg.batch capacities
  • Better productivity and low drying time
  • SS container with tilting arrangement
  • Compact and easily cleanable
  • No product contamination batch to batch
  • Uniform drying
  • Low drying temperature
  • Electric or Steam Heated
  • Manual or Automatic bag shaking
  • Single piece retarding and finger Bag chamber available
